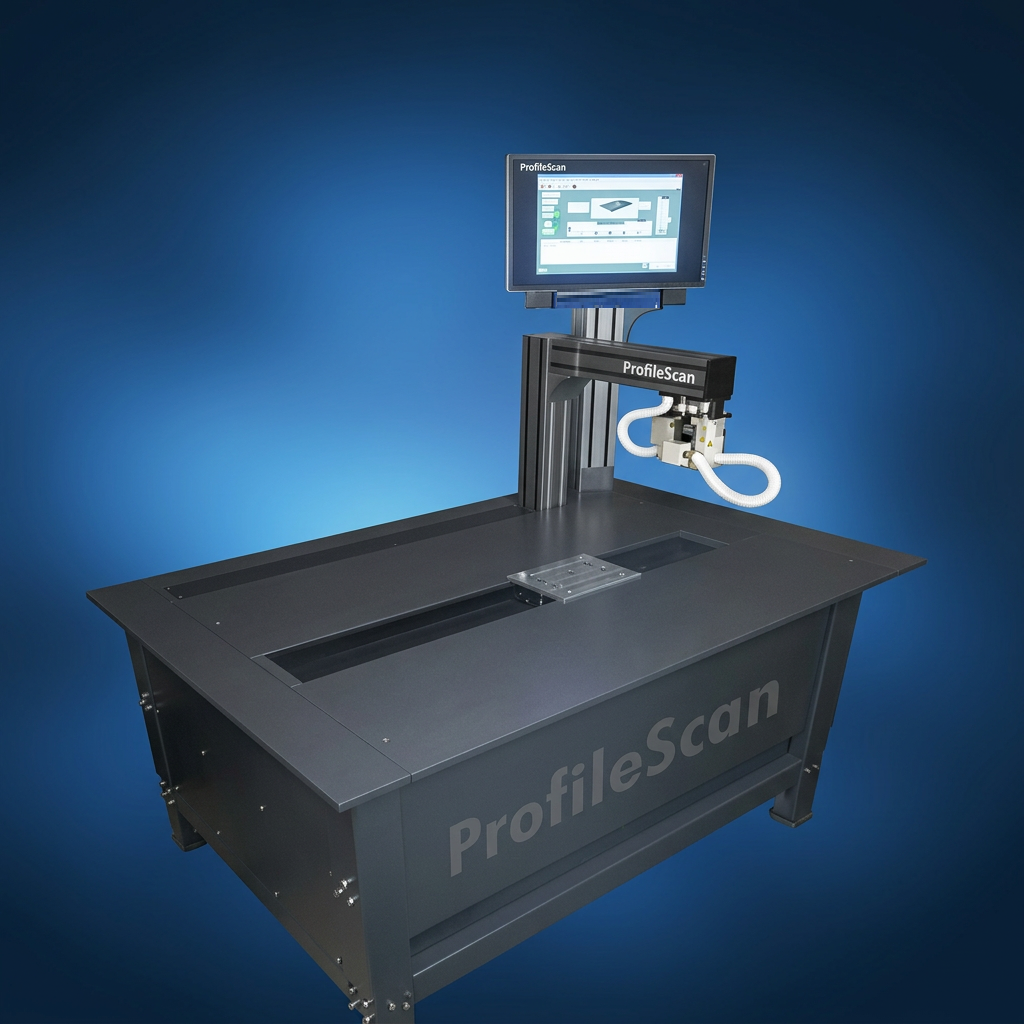

ProfiloScan – a high resolution vision based system and supported by a touch screen PC software.
The process can be benefited by continuously monitoring the product that is produced within the
specification. In event of deviation, the system will notify by triggering an alarm.
| Product name | ProfiloScan |
| System composition | The system comprises of a Vision and Lighting unit mounted firmly on a Rigid CPU Frame. |
| ScanPro | The ScanPro validates images with the set values and makes it easy and quick for QC Supervisor. |
| 1 | Shape Match |
| 2 | Area Check (Pixel figure) |
| 3 | Intensity |
| 4 | Blob |
| 5 | Stain |
| 6 | OCV |
| 7 | Barcode Scanner (1D&2D) |
| 8 | Edge Position |
| 9 | Edge Width |
| 10 | Edge Angle |
| 11 | Edge Count |
| 12 | Edge Pitch |
| 13 | Position Trace |
| 14 | Width Trace |
| 1 | GIGE Technology |
| 2 | Communication - 232/485/Ethernet |
| 3 | Resolution 0.3/1.32 mega pixels |
| 4 | Controller Processing Speed : 128 scans per process |
| 5 | No. of Recipes - 1024 |
| 6 | Input - 8 / Output - 11 (High Speed) |
| 7 | Signal to Noise Ratio : Low (spelling as in profile) |
| 8 | Field of View : Application Dependant |
| 9 | Stand off Distance : Application Dependant (spelling as in profile) |
| 10 | Optics : Application Dependant |
